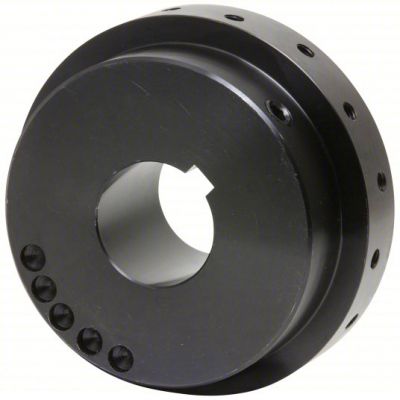

TB Woods WE4 Dura-Flex BTS Hub - 1-3/16" Shaft Bore

$109.85
SKU
WE4H1316

BTS (Bore-To-Size) metal hubs for TB Woods Dura-Flex tire coupling elements. These BTS hubs will fit both standard and spacer elements. Tire couplings provide a simple, lightweight solution that can absorb a large amount of shock loading and torsional vibration while accommodating various shaft spacings. The two-piece element construction makes them easy to install and replace without any lubrication required.

TYPICALLY IN STOCK AT THE FACTORY. CALL TO CONFIRM.
  • Manufacturer: TB Woods (Altra Motion)
  • Part Number: WE4H1316
  • UPC: 698672152938
  • Coupling Size: 4
  • Shaft Bore Diameter: 1.188" (1-3/16")
  • Material: Carbon Steel
  • Torque Rating: 550 in-lb
  • HP Rating @ 100 RPM: 0.9
  • HP Rating @ 1160 RPM: 10
  • HP Rating @ 1750 RPM: 15
  • HP Rating @ 35000 RPM: 31
  • Maximum RPM: 7500
  • Maximum Parallel Misalignment: 1/16
  • Maximum Angular Misalignment: 4°
