Pump Seal Identification & Replacement
Identifying the correct mechanical seal can be tough for even the most experienced pump mechanics.
Gaddis has been working with mechanical seals for almost 70 years and we love to help! If you have a pump manual, nameplate, or seal sample and you need assistance ordering the correct replacement seal, please CONTACT US and we can help guide you in the right direction!
This page includes some additional resources we think may be helpful for our customers to identify and replace their old pump seals.
US Seal Type A (John Crane Type 6)
US Seal Type C (John Crane Type 21)
US Seal Type D / DB (John Crane Type 2 / 2B)
US Seal Type E / EB (John Crane Type 1 / 1B)
US Seal Type G (John Crane Type 2100)
U.S. SEAL MANUFACTURING - HIGH-QUALITY, LOW-COST REPLACEMENT SEALS
Gaddis is a stocking distributor for U.S. Seal Mfg, a division of John Crane. They manufacture reliable low-cost pump seals right here in the United States. Below are resources that can help you identify the correct replacement seal for your pump. You can browse their products on our website, or CONTACT US if you need any help!
- 2023 US Seal Catalog

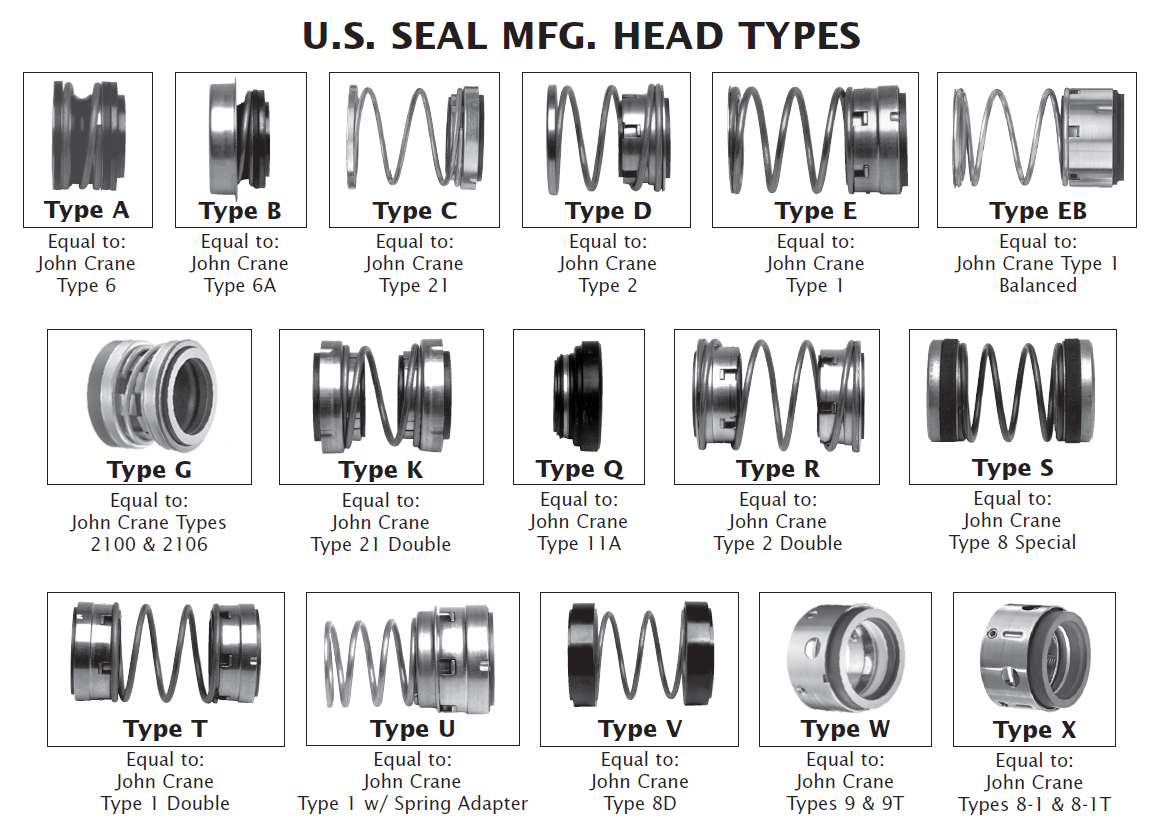

- Rotary Head & Mating Ring Types
- Cyclone Abrasive Separators for Pump Seals
- Gaddis Company - US Seal Products
TROUBLESHOOTING THE CAUSE OF SEAL FAILURE OR LEAKAGE:
If a seal is being replaced because of mechanical seal failure or leakage, it is important to evaluate the failure before choosing a replacement seal. Reinstalling the same type of seal could lead to the same failure. Changing the type of seal (or upgrading the materials) could drastically extend the life of a mechanical seal. Below is a guide for how to identify the type of seal failure, and what corrective actions might help.
VIDEO GUIDE FOR THE REPLACEMENT OF RUBBER BELLOWS PUMP SEALS:
