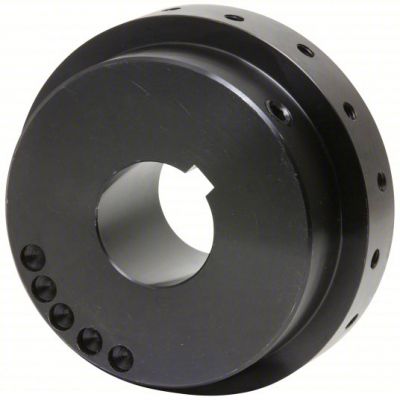

TB Woods WE4 Dura-Flex BTS Hub - 1-11/16" Shaft Bore
$109.85
SKU
WE4H11116
BTS (Bore-To-Size) metal hubs for TB Woods Dura-Flex tire coupling elements. These BTS hubs will fit both standard and spacer elements. Tire couplings provide a simple, lightweight solution that can absorb a large amount of shock loading and torsional vibration while accommodating various shaft spacings. The two-piece element construction makes them easy to install and replace without any lubrication required.
TYPICALLY IN STOCK AT THE FACTORY. CALL TO CONFIRM.
- Manufacturer: TB Woods (Altra Motion)
- Part Number: WE4H11116
- UPC: 698672152921
- Coupling Size: 4
- Shaft Bore Diameter: 1.687" (1-11/16")
- Material: Carbon Steel
- Torque Rating: 550 in-lb
- HP Rating @ 100 RPM: 0.9
- HP Rating @ 1160 RPM: 10
- HP Rating @ 1750 RPM: 15
- HP Rating @ 35000 RPM: 31
- Maximum RPM: 7500
- Maximum Parallel Misalignment: 1/16
- Maximum Angular Misalignment: 4°
