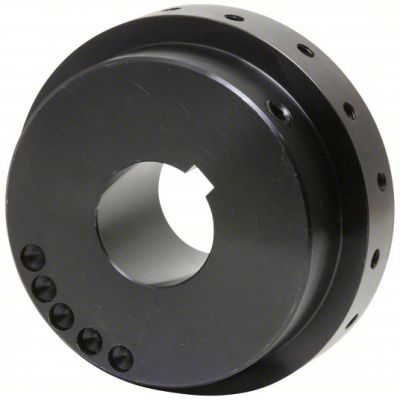

TB Woods WE2 Dura-Flex BTS Hub - 3/4" Shaft Bore
$71.37
SKU
WE2H34
BTS (Bore-To-Size) metal hubs for TB Woods Dura-Flex tire coupling elements. These BTS hubs will fit both standard and spacer elements. Tire couplings provide a simple, lightweight solution that can absorb a large amount of shock loading and torsional vibration while accomodating various shaft spacings. The two-piece element construction makes them easy to install and replace without any lubrication required.
TYPICALLY IN STOCK AT THE FACTORY. CALL TO CONFIRM.
- Manufacturer: TB Woods (Altra Motion)
- Part Number: WE2H34
- UPC: 698672117913
- Coupling Size: 2
- Shaft Bore Diameter: 0.750" (3/4")
- Material: Carbon Steel
- Torque Rating: 190 in-lb
- HP Rating @ 100 RPM: 0.3
- HP Rating @ 1160 RPM: 3.5
- HP Rating @ 1750 RPM: 5.3
- HP Rating @ 35000 RPM: 11.0
- Maximum RPM: 7500
- Maximum Parallel Misalignment: 1/16
- Maximum Angular Misalignment: 4°
