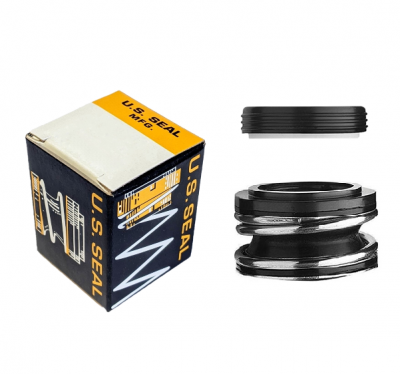

PS-501V-CMS Pump Seal

$44.17

SKU

PS-501V-CMS

• IN STOCK •

Compact, unitized, single spring, elastomer bellows seal. The factory assembles one piece design permits fast, easy installation and the full-convolution elastomer bellows provides maximum flexibility in compensating for shaft movement and wear. Common in centrifugal water pumps, deep and shallow well jet pumps, swimming pool and wastewater pumps.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME

Manufacturer: U.S. Seal Manufacturing
Part Number: PS-501V-CMS
Shaft Size: 0.625" (5/8")
Rotary Head Type: US Seal Type A (John Crane Type 6)
Rotary Head Material: SS/Molded Plastic/Viton
Rotary Head Dimensions: 1.218" OD, 0.811" Operating Height
Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
Stationary Seat Material: Ceramic/Viton
Stationary Seat Dimensions: 1.250" Bore, 0.406" Thick
Maximum Temperature: 400F (204C)
Maximum Pressure: to 75 psi (5.2 Bar)
Seal Faces: Molded Plastic vs. Ceramic
Elastomers: Viton
