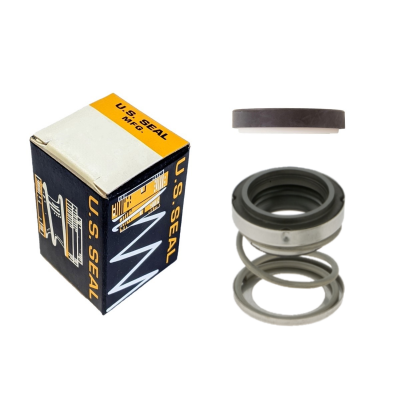

PS-267V-CMS Pump Seal

$190.84
SKU
PS-267V-CMS
• IN STOCK •

Elastomer bellows seal, non-clogging, single coil spring. The drive band's notch design eliminates overstressing of the bellows. Common in rotary and turbine pumps, compressors, mixers, blenders and chillers.

SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME

  • Manufacturer: U.S. Seal Manufacturing
  • Part Number: PS-267V-CMS
  • Shaft Size: 2.000" (2")
  • Rotary Head Type: US Seal Type C (John Crane Type 21)
  • Rotary Head Material: SS/Carbon/Viton
  • Rotary Head Dimensions: 2.875" OD, 1.500" Operating Height
  • Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
  • Stationary Seat Material: Ceramic/Viton
  • Stationary Seat Dimensions: 2.687" Bore, 0.500" Thick
  • Maximum Temperature: 400F (204C)
  • Maximum Pressure: to 150 psi (10.3 Bar)
  • Seal Faces: Carbon vs. Ceramic
  • Elastomers: Viton
