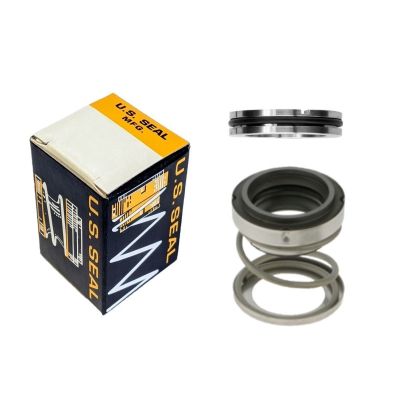

PS-1019 Mechanical Seal
$111.51
SKU
PS-1019
Elastomer bellows seal, non-clogging, single coil spring. The drive band's notch design eliminates overstressing of the bellows. Common in rotary and turbine pumps, compressors, mixers, blenders and chillers.
- Manufacturer: US SEAL
- Manufacturer Part #:
- Shaft Size: 1.625" (1-5/8")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 2.500" OD, 1.375" Operating Height
- Stationary Seat Type: O-Ring Seat (US Seal Type 3)
- Stationary Seat Material: Ni-Resist(SS)/Buna
- Stationary Seat Dimensions: 2.375" Bore, 0.500" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon vs. Stainless
- Elastomers: Buna
- Manufacturer Equivalents:
