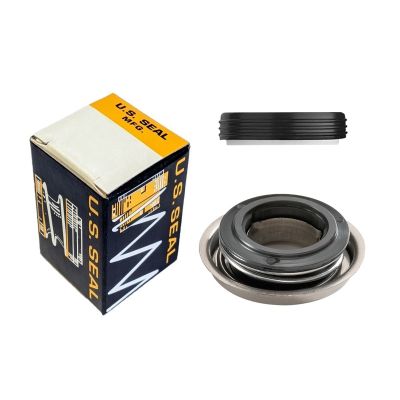

PS-1000V Pump Seal
$22.53
SKU
PS-1000V
• IN STOCK •
A full-convolution elastomer bellows provides maximum flexibility in compensating for shaft movement while torsional stress on the bellows is controlled by a dent and groove positive drive arrangement. Common in centrifugal water pumps, sump pumps, submersible and swimming pool pumps.
SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: U.S. Seal Manufacturing
- Part Number: PS-1000V
- Shaft Size: 0.625" (5/8")
- Rotary Head Type: US Seal Type B (John Crane Type 6A)
- Rotary Head Material: SS/Molded Plastic/Viton
- Rotary Head Dimensions: 1.437" OD, 0.615" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Ceramic/Viton
- Stationary Seat Dimensions: 1.250" Bore, 0.406" Thick
- Maximum Temperature: 400F (204C)
- Maximum Pressure: to 75 psi (5.2 Bar)
- Seal Faces: Molded Plastic vs. Ceramic
- Elastomers: Viton
