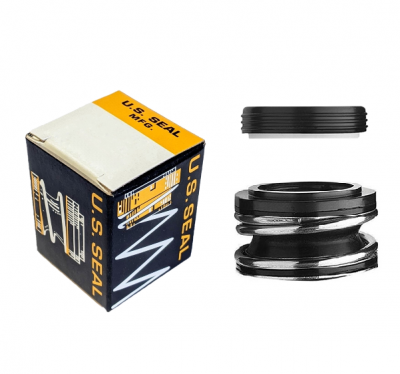

PS-100 Pump Seal
$9.41
SKU
PS-100
• IN STOCK •
Compact, unitized, single spring, elastomer bellows seal. The factory assembles one piece design permits fast, easy installation and the full-convolution elastomer bellows provides maximum flexibility in compensating for shaft movement and wear. Common in centrifugal water pumps, deep and shallow well jet pumps, swimming pool and wastewater pumps.
SHIPS SAME-DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME
- Manufacturer: US SEAL
- Manufacturer Part #: PS-100
- Shaft Size: 0.625" (5/8")
- Rotary Head Type: US Seal Type A (John Crane Type 6)
- Rotary Head Material: SS/Molded Plastic/Buna
- Rotary Head Dimensions: 1.218" OD, 0.718" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Ceramic/Buna
- Stationary Seat Dimensions: 1.187" Bore, 0.343" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 75 psi (5.2 Bar)
- Seal Faces: Molded Plastic vs. Ceramic
- Elastomers: Buna
- Manufacturer Equivalents: PAC-SEAL #60611
