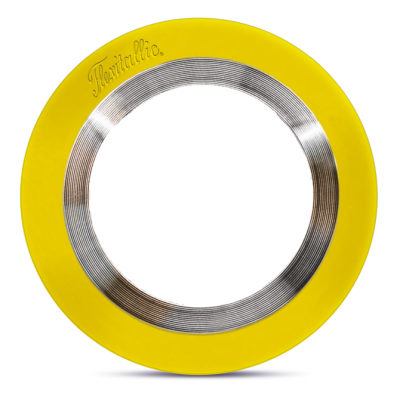

(PACK OF 5) Flexitallic Spiral Wound Gasket, Style CG, 304/FG/CS, for 2-1/2”-150 Flange
Flexitallic is the industry standard for high-quality reliable spiral wound gaskets. These style CG gaskets are comprised of a 304 stainless steel spiral-wound sealing element with a flexible graphite filler. A carbon steel outer ring assists in centering the gasket between mating flange faces and preventing over-compression of the sealing element ensuring optimum sealing performance. Style CG gaskets are suitable for use on both raised-face and flat flanges. A great option for mild and moderate industrial service conditions.
*PACK OF 5 GASKETS*
Style: CG (includes Spiral-Wound Sealing Element and Outer Ring)
Material: 304 SS Windings / Flexible Graphite Filler / Carbon Steel Outer Ring
Pipe Size: 2-1/2"
ANSI Flange Class: 150 lb
Winding Thickness: 0.175"
Centering Ring Thickness: 0.125"
Sealing Element Inside Diameter: 3.25”
Sealing Element Outside Diameter: 3.88”
Centering Ring Outside Diameter: 4.88”
Maximum Temperature: 842°F (450°C)
