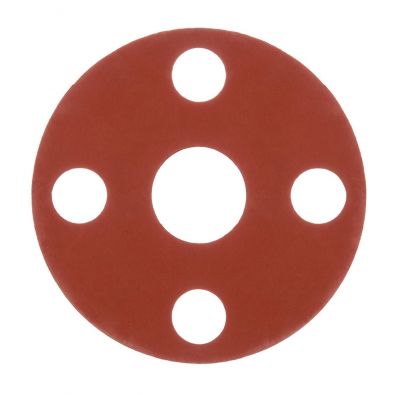

(PACK OF 10) 1/8" Red Rubber Gasket, Full Face, for 2-1/2"-150# Flanges
Full-face flange gaskets made to fit standard ANSI pipe flange dimensions. Red rubber is a general service SBR rubber compound of excellent quality making it a great option for economical gasket material. SBR conforms easily to uneven flange surfaces, has good abrasion resistance, excellent impact strength, very good resilience, and a high tensile strength. It is a very popular flange gasket material for water applications up to 170 degrees. Red Rubber is not suited for use with oils, fuels, solvents or hydraulic fluids.
*PACK OF 10 GASKETS*
Style: Full Face Gasket
Material: General Service SBR Rubber, Smooth Finish
Pipe Size: 2-1/2"
ANSI Flange Class: 150 lb
Thickness: 0.125" (1/8")
Inside Diameter: 2.875" (2-7/8")
Outside Diameter: 7.000" (7")
No. of Bolts: 4
Hole Diameter: 0.750" (3/4")
Bolt Circle Diameter: 5.500" (5-1/2")
Maximum Temperature: 210°F (99°C)
Maximum Continuous Temperature: 170°F (77°C)
