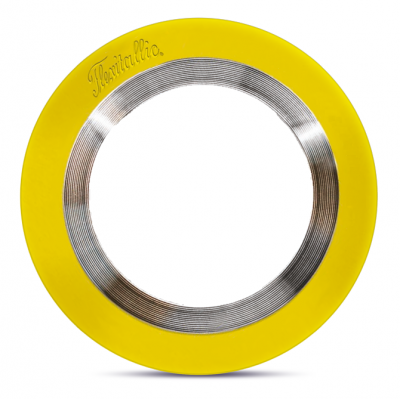

(PACK OF 2) Flexitallic Spiral Wound Gasket, Style CG, 304/FG/CS, for 6”-600 Flange

$39.50
SKU
FLEX-CG-6-600

Flexitallic is the industry standard for high-quality reliable spiral wound gaskets. These style CG gaskets are comprised of a 304 stainless steel spiral-wound sealing element with a flexible graphite filler. A carbon steel outer ring assists in centering the gasket between mating flange faces and preventing over-compression of the sealing element ensuring optimum sealing performance. Style CG gaskets are suitable for use on both raised-face and flat flanges. A great option for mild and moderate industrial service conditions.

*PACK OF 2 GASKETS*

Style: CG (includes Spiral-Wound Sealing Element and Outer Ring)

Material: 304 SS Windings / Flexible Graphite Filler / Carbon Steel Outer Ring

Pipe Size: 6"

ANSI Flange Class: 600 lb

Winding Thickness: 0.175"

Centering Ring Thickness: 0.125"

Sealing Element Inside Diameter: 6.88”

Sealing Element Outside Diameter: 8.25”

Centering Ring Outside Diameter: 10.50”

Maximum Temperature: 842°F (450°C)
