Gorman-Rupp 25271-824 Mechanical Seal
$14.90
SKU
GORMANRUPP25271-824

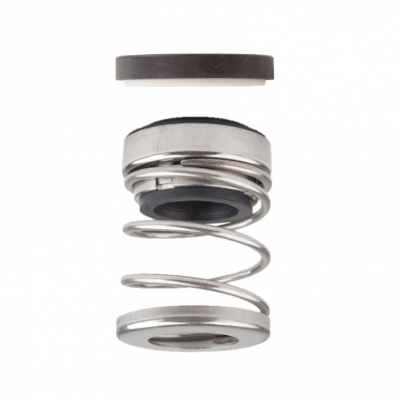

Mechanical seal assembly for Gorman-Rupp pumps. Elastomer bellows seal, non-clogging, single coil spring. The drive band's notch design eliminates overstressing of the bellows.
- Manufacturer: US SEAL
- Shaft Size: 0.625" (5/8")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 1.062" OD, 0.875" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Ceramic/Buna
- Stationary Seat Dimensions: 1.250" Bore, 0.406" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon vs. Ceramic
- Elastomers: Buna
- Manufacturer Equivalents: GORMAN-RUPP 25271-824
