Gorman-Rupp 25271-159 Mechanical Seal
$58.18
SKU
GORMANRUPP25271-159

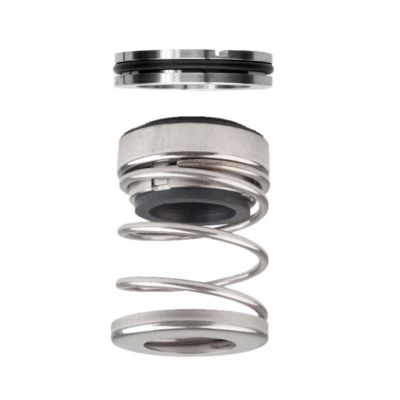

Mechanical seal assembly for Gorman-Rupp pumps. Elastomer bellows seal, non-clogging, single coil spring. The drive band's notch design eliminates overstressing of the bellows.
- Manufacturer: US SEAL
- Shaft Size: 0.875" (7/8")
- Rotary Head Type: US Seal Type C (John Crane Type 21)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 1.312" OD, 0.937" Operating Height
- Stationary Seat Type: O-Ring Seat (US Seal Type 3)
- Stationary Seat Material: Ceramic/Buna
- Stationary Seat Dimensions: 1.500" Bore, 0.406" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 150 psi (10.3 Bar)
- Seal Faces: Carbon vs. Stainless
- Elastomers: Buna
- Manufacturer Equivalents: GORMAN-RUPP 25271-159
