Gorman-Rupp 25271-061 Mechanical Seal
$188.62
SKU
GORMANRUPP25271-061

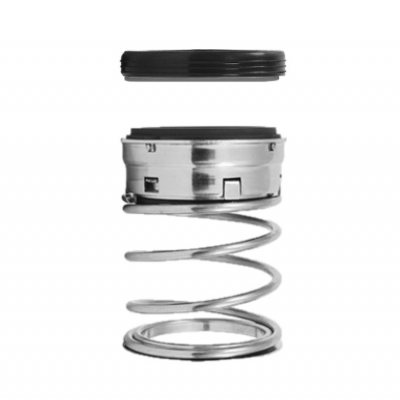

Mechanical seal assembly for Gorman-Rupp pumps. Self adjusting elastomer bellows compensate for abnormal shaft end play and primary face sealing wear. This seal's large single coil spring is much sturdier than a multiple spring construction design. The spring is non-clogging, self-cleaning and will not foul up due to fluid contact.
- Manufacturer: US SEAL
- Shaft Size: 1.625" (1-5/8")
- Rotary Head Type: US Seal Type E (John Crane Type 1)
- Rotary Head Material: SS/Carbon/Buna
- Rotary Head Dimensions: 2.250" OD, 2.000" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Ni-Resist(SS)/Buna
- Stationary Seat Dimensions: 2.375" Bore, 0.500" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 350 psi (24.1 Bar)
- Seal Faces: Carbon vs. Stainless
- Elastomers: Buna
- Manufacturer Equivalents: GORMAN-RUPP 25271-061
