Gorman-Rupp 12874-010 Mechanical Seal
$10.98
SKU
GORMANRUPP12874-010

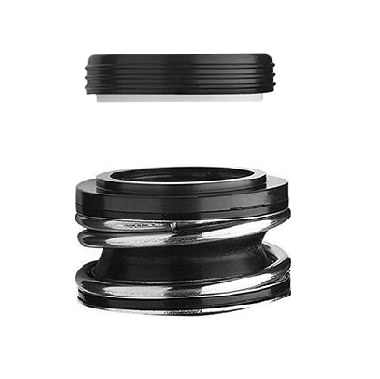

Mechanical seal assembly for Gorman-Rupp pumps. Compact, unitized, single spring, elastomer bellows seal. The factory assembles one piece design permits fast, east installation and the full-convolution elastomer bellows provides maximum flexibility in compensating for shaft movement and wear.
- Manufacturer: US SEAL
- Shaft Size: 0.625" (5/8")
- Rotary Head Type: US Seal Type A (John Crane Type 6)
- Rotary Head Material: SS/Molded Plastic/Buna
- Rotary Head Dimensions: 1.218" OD, 0.718" Operating Height
- Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
- Stationary Seat Material: Ceramic/Buna
- Stationary Seat Dimensions: 1.250" Bore, 0.406" Thick
- Maximum Temperature: 225F (107C)
- Maximum Pressure: to 75 psi (5.2 Bar)
- Seal Faces: Molded Plastic vs. Ceramic
- Elastomers: Buna
- Manufacturer Equivalents: GORMAN-RUPP 12874-010
