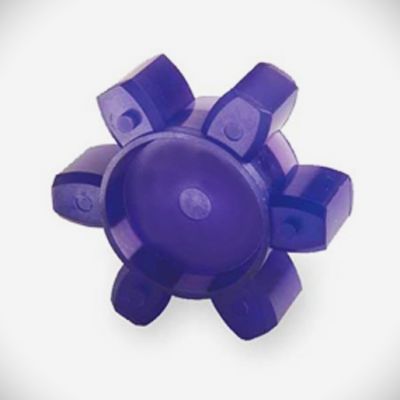

CJ 19 Curved Jaw Coupling Insert, 80A Blue

$11.73
SKU
CJ19-80A-B

CJ curved jaw coupling inserts provide shaft-to-shaft connections with no metal-to-metal contact and no lubrication required. Curved inserts provide improved torsional softness and angular misalignment capability compared to standard L-Jaw style spider inserts. Easy to install and replace. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors. These CJ inserts come in three different shore hardnesses, each providing a different level of torque capacity, damping, and chemical resistance. This 80A blue polyurethane insert provides increased damping characteristics, but lower torque ratings than other hardnesses.

*TYPICALLY IN STOCK*

*PLEASE CALL TO CONFIRM STOCK*

THIS ITEM TYPICALLY SHIPS SAME DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN STANDARD TIME



  • Manufacturer: Lovejoy
  • Manufacturer’s Part #: 68514461461
  • Style: CJ Curved Jaw
  • Size: CJ 19/24
  • Color: Blue
  • Material: 80A Polyurethane
  • Temperature Range: -40°F to +212°F
  • Maximum Continuous Torque: 43 in-lb (5 N-m)
  • Maximum Torque: 86 in-lb (10 N-m)
  • Rated HP @ 1200 RPM: 2.0
  • Rated HP @ 1800 RPM: 3.0
  • Maximum RPM: 14,000
  • Hardness: 80A Shore
  • Typical Applications: When increased dampening is required
