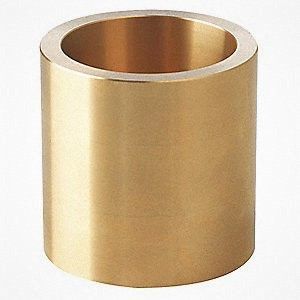

(PACK OF 10) Cast Bronze Bushing, 1/2" ID x 5/8" OD x 1/2" Long
These bushings are manufactured from continuous cast bronze material that conforms to specifications ASTMB 505-C932, SAE 660 and CuSn7ZnPb.
Cast bronze standards are general-purpose bearings that provide the best mix of functional properties, availability and economical cost. They offer excellent load carrying capabilities with good anti-frictional properties. They can perform over a broad range of temperatures (up to 450 F°) and can readily be modified with grease grooves, oil grooves or self-lubricating graphite plugs.
All standard stock sizes are also available in other materials such as no-lead bronze, aluminum bronze, manganese bronze and cast iron. Special requests are welcome!
TYPICALLY SHIPS SAME DAY FROM STOCK IF ORDERED BY 2:00 PM EASTERN TIME. CALL TO CONFIRM STOCK.
*PACK OF 10 BUSHINGS*
- Style: Standard "CB" Cast Bronze Bushing
- CB #: CB 810-04
- Inner Diameter: 0.500" (1/2")
- Outer Diameter: 0.625" (5/8")
- Maximum Temperature: 450°F (232°C)
- Length: 0.500" (1/2")
- Material: 660 Cast Bronze
- Specification: ASTMB 505-C932, SAE 660 and CuSn7ZnPb
