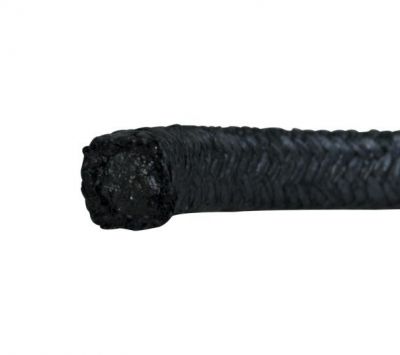

Garlock 127-AFP Valve Stem Packing, 1/2" Square - Wire Reinforced
General service valve stem packingfor high temperature and high pressure.Iconel wire fully imbedded in carbon yarn. The carbon does the sealing and jackets the inconel wire's abrasive contact with the stem. This jacket surrounds a flexible and resilient asbestos free corewhich contains zinc powder to prevent corrosion. Style 127AFP features superior thermal properties and better heat conductivity than asbestos or non-asbestos jacketed valve stem packings.
TYPICALLY IN STOCK AT THE FACTORY. PLEASE CALL TO CONFIRM STOCK OR LEADTIME.
Manufacturer: Garlock Sealing Technologies
Manufacturer Part #: 41127-1032 (1 LB Box) 41127-1232 (2 LB Box) 41127-2032 (5 LB Box)
Style: 127-AFP
Braid Size (inch): 0.5000
Total Length (ft): 5.7 (1 LB Box) 11.4 (2 LB Box) 28.6 (5 LB Box)
Maximum Temperature: to 1200°F (650°C) in steam
pH Range: 1-12
Shaft Speed: to 1200 FPM
Maximum Pressure: to 1200 psi (82 Bar)
Construction: Outer jacket of carbon yarn over a propriatary plastallic core. Ni-Cr alloy wire reinforced.
